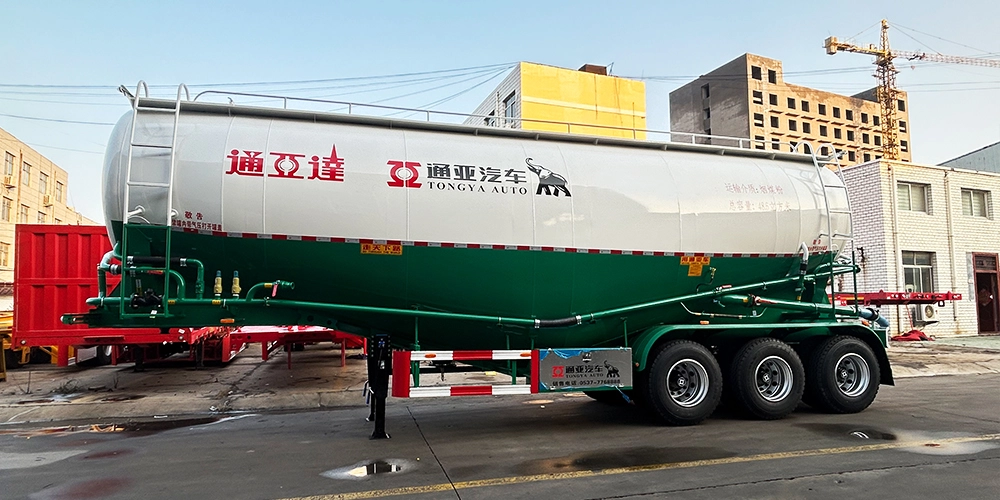

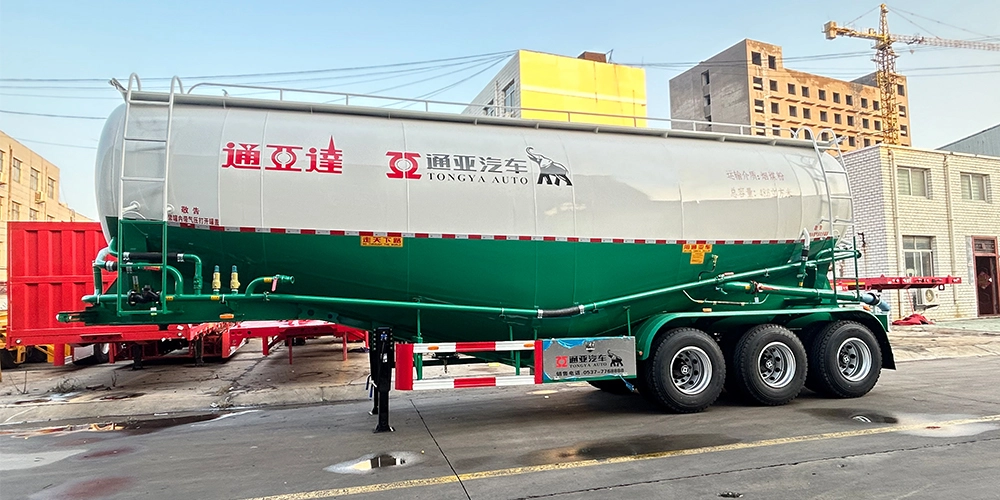

Tri Axle 50CBM Cement Tanker Trailer for Sale
TONGYA Auto bulk cement tanker trailer is widely used for transporting and storing cement, coal powder, dry mortar, food, and chemical powder.
Description
Bulk Cement Tanker with large loading capacity can effectively improve the transportation efficiency and save time and money costs. At the same time has good sealing good, to ensure that the transportation medium is not disturbed by the external environment.
Bulk Cement Tanker Specifications:
|
Weight: |
Tare Weight | 10T |
| Loading capacity | 50T | |
| Total weight | 60T | |
| Dimensions: | Dimension | 12500×2500*3700mm (The final dimensions depend on the final design drawings) |
| Tanker capacity | 60m3 (60000L) | |
| Tanker body: | Design/welding technology | Heavy duty and extra durability designed;welding by automatic Submerged-Arc processes. |
| Tanker body | The tanker body made of 4mm, tanker ends made of 5mm thickness steel, Q235 steel | |
| Bottom chassis | High strength Q345B steel | |
| Tanker shape | “V” shape | |
| Silo | 1 silo | |
| Manhole: | 2 pieces, (Diameter is 500mm) | |
| Discharge mouth | 4 inch Discharge mouth | |
| Safety pressure valve | Standard | |
| Discharge hose | 8m with Hose carries, the length is according to customer requirement | |
| Air compressor | Optical | |
| Engine | Optical | |
| Rear ladder and handrail | Standard | |
| Retention volume | <0.3% | |
| OEM parts: | Axle | 3* 13 tons capacity, FUWA brand (Chinese best brand) |
| King Pin | 2.00 /3.5 inch, bolting king pin, JOST brand | |
| Suspension | Heavy duty suspension with equalizers, American design (high-strength type) | |
| Steel Spring | Four sets of 10pcs leaf spring, 13mm thickness, 90mm width | |
| Landing legs | TONGYA 28T | |
| Tire specs | 12R22.5 Triangle brand | |
| Rim | 9.0-22.5 | |
| Number of wheel | 9pieces(including one spare wheel) | |
| Brake system | WABCO relay valve; Four double brake chamber; One unit of reliable local brand 45L air tank; Two units of reliable local brand standard coppery air-connector. | |
| ABS system | Without（Can be choose freely,450 USD/set） | |
| Electrical: | One unit of 24V 7-pin ISO 1185 socket; LED light (standard rear light, turn light, rear reflector, side light, side reflector etc.) | |
| Miscellaneous: | Painting | color advised by client |
| Marking | Standard | |
| Side Guard | Standard | |
| spare wheel carrier | Two set of heavy duty spare wheel carriers, including a riser. | |
| Tools box | One piece (1. 0*0. 5*0. 5m)(equipped with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar) | |
|
Note: All the details not mentioned will design as the final confirmation with the customer |
||
More product of details,please contact us.We have own factory,welcome to visit our factory.
Dry Bulk Trailer for Sale
Bulk cement Tanker Trailer improves transport, reduces transport cost, and decreases pollution. Realized the mechanization of loading, transporting, discharging and storage.
The Most Powerful Factory in China
Established in 1982; Total assets of 70 million dollars; Factory covers an area of 400,000 square meters; Strong semi-trailer factory in China; One of the drafters of China's semi-trailer standard
We have our own production workshop
We have our own production workshop with short production cycle and will deliver to you in the shortest time.
