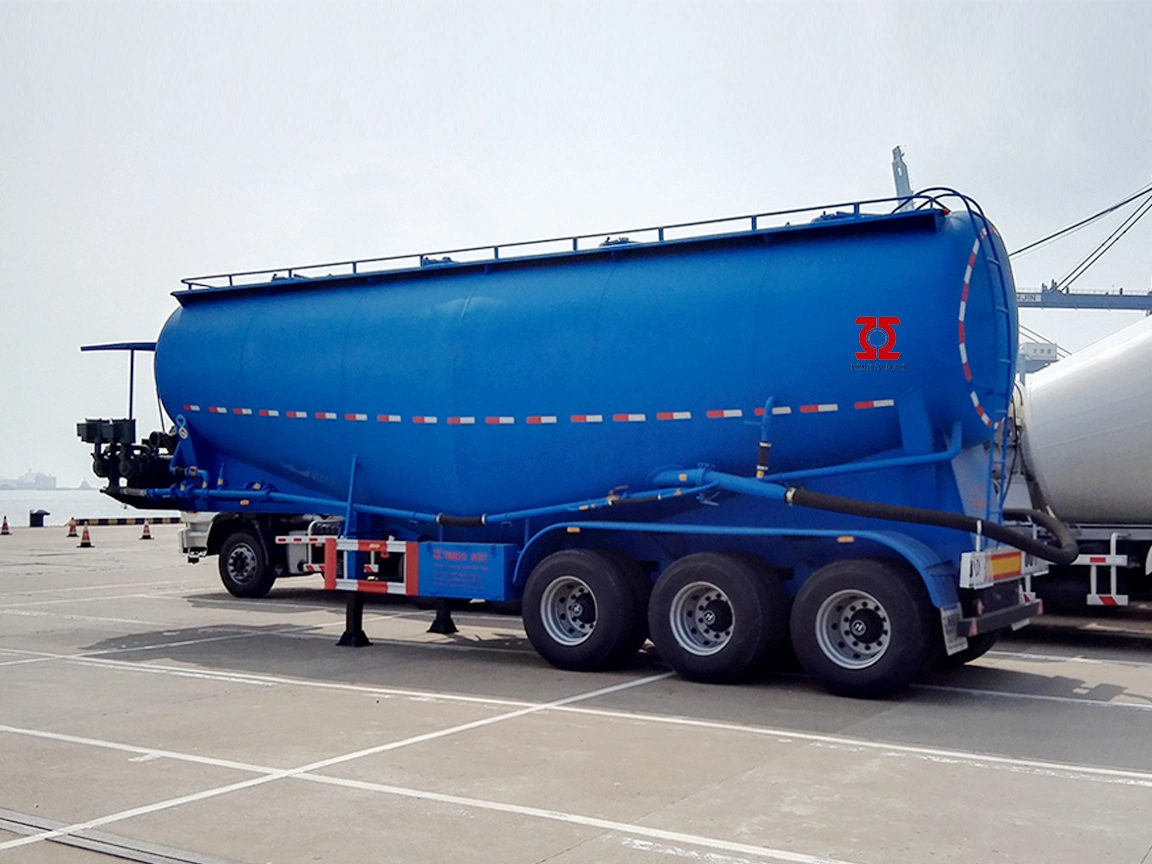

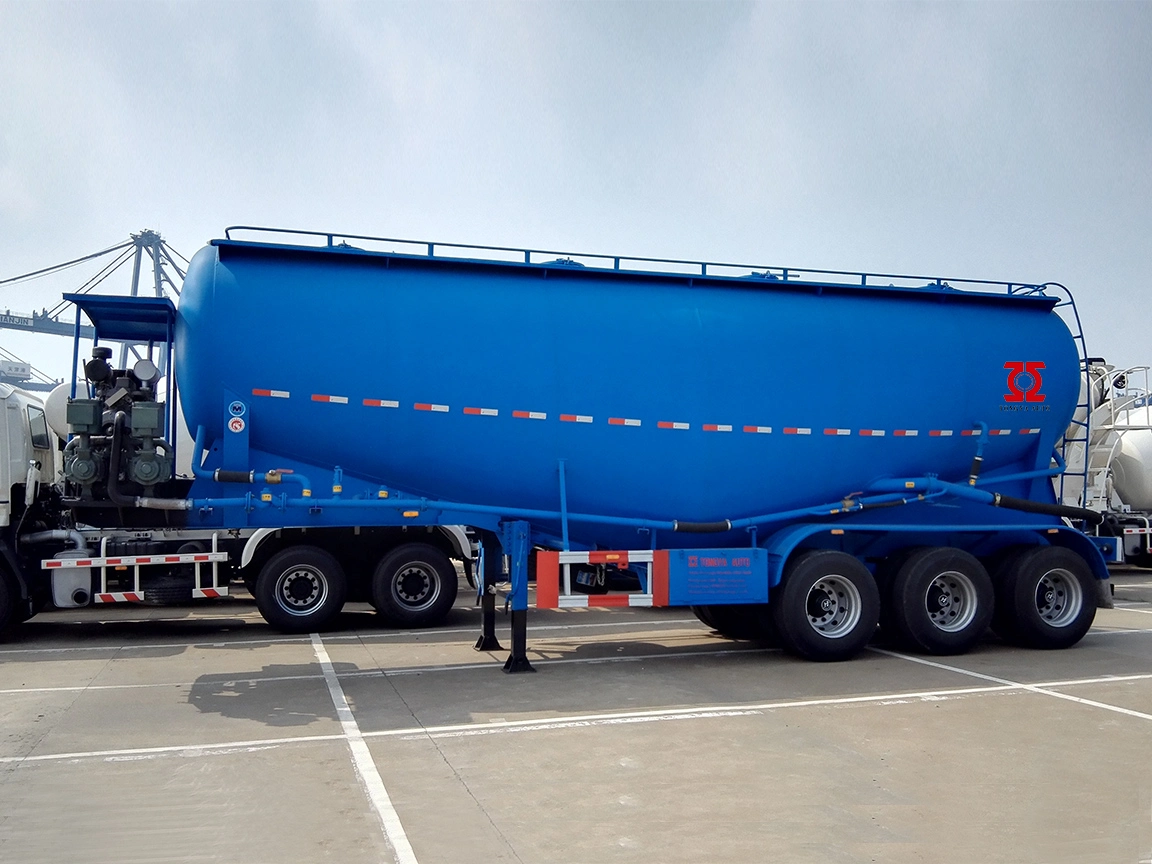

Dry bulk cement tanker is suitable for the transportation of fly ash, pulverized coal, cement and other materials, such as light weight, convenient operation and low cost, and has the characteristics of small air flow loss in the air chamber, good compression resistance, fast discharge speed and low residual rate.
dry bulk cement tanker of specification:
|
Main Dimension |
|
| Manufacturer: | TONGYA AUTOMOBILE.CO.,LTD |
| Place of Origin： | Shandong, China |
| Type： | Bulk Cement Tanker Semi Trailer |
| Dimension: | 11000*2500*3900mm (can be customized) |
| Tare Weight: | About 9T |
| Loading Capacity: | ≤40T |
| Tanker Capacity: | 40m3 (40000L) |
| Tanker body Thickness(mm): | 5mm |
| Front and Rear dish Thickness(mm): | 6mm |
| Chassis | |
| Bottom chassis | High strength Q355B steel |
| Tanker shape | “V” shape |
| Manhole: | 2 pieces, (Diameter is 500mm) |
| Discharge mouth | 4 inch Discharge mouth |
| King Pin: | Jost brand 2.0 inch |
| Support Legs： | Jost brand A300C |
| Axle: | 13T*3, FUWA Brand |
| Suspension: | Mechanical suspension |
| Spring Leaf: | 90(width)mm*13(thickness)mm*10layer |
| Tire: | 12R22.5 Triangle brand ( various tire brands are available) |
| Rim: | 9.0-22.5 |
| Air compressor | 12m3 double-cylinder air compressor, Bohai brand (Chinese famous brand) |
| Engine | Diesel Engine,Weifang Tianhe brand 4105 engine (Chinese famous brand) |
| Emergency Brake Valve: | WABCO |
| Spare Tire: | 1 Piece |
| Painting: | Advanced powder spraying with baking enamels processes |
| Accessories: | One standard tool box |
Please contact us for specific detailed parameters, we will give you the most favorable price.
