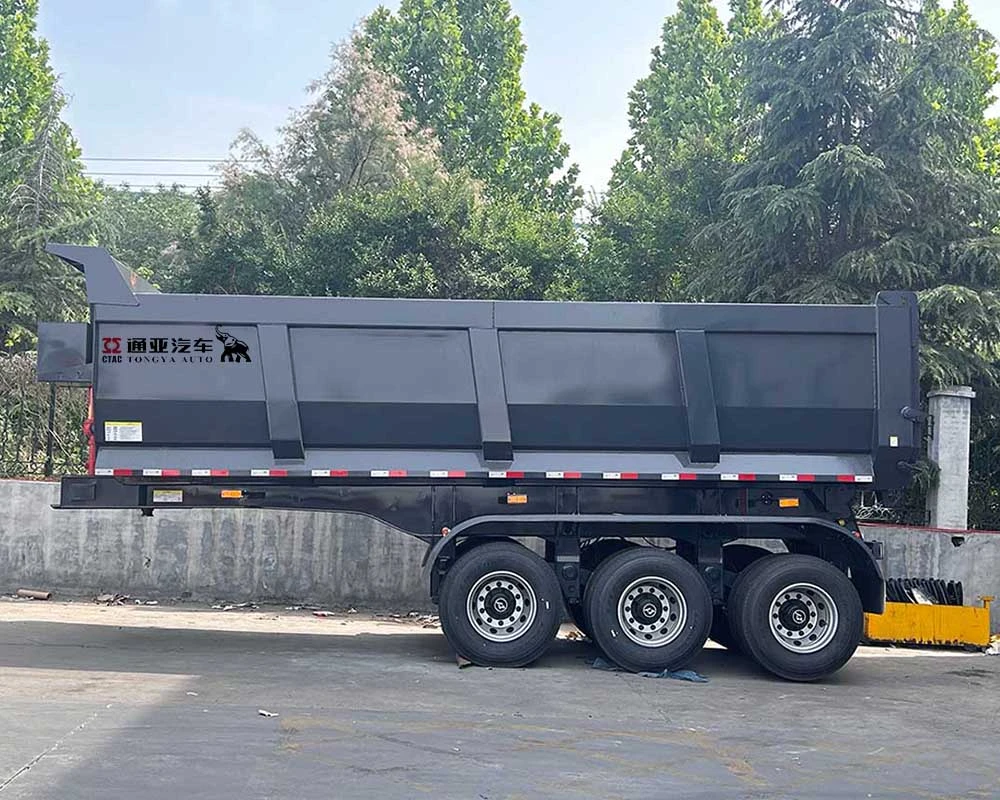

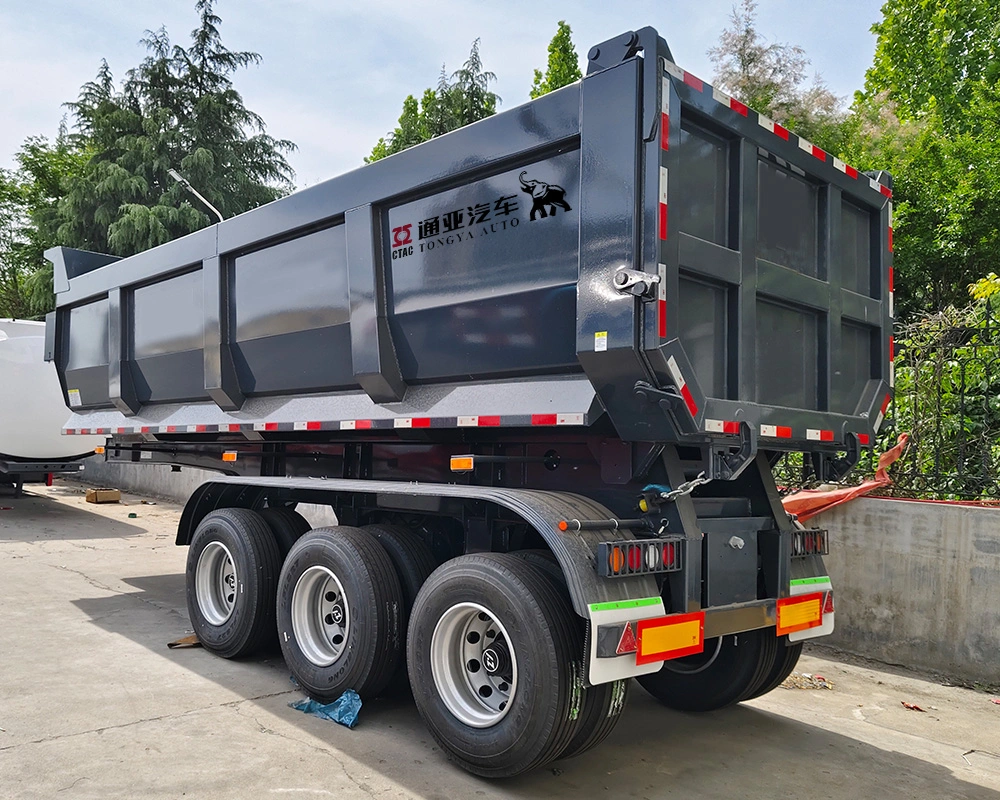

3 Axle Dump Semi Trailer

Overall L*W*H7700*2500*1500mm(customized)
Payload40T
ABSOptional
Axles3
ColorCustomized
3 Axle Dump Semi Trailer

Description

3 Axle Dump Semi Trailer Advantages:

1. The use of high quality steel in the body of the vehicle reduces weight and allows for more cargo to be loaded.

2. U-shaped body design makes loading and unloading cargo more convenient.

3. Different configurations can be designed according to different cargo requirements, thus creating a modern transportation tool.

3Axle Dump Semi Trailer Specification:

Semi trailer Dimension

7700*2500*1500mm(customized)
Tare Weight About 10000kg
Total Volume 37m3 or less than 40tons
Side wall thicknes(mm) 6mm Q235 steel
Bottom plate thickness(mm) 8mm Q235steel
Lifting system Full set of Hyva(FC214-5-07130)Hydraulic Lifting Cylinder
Chassis
Main beam

Height:500mm,upon plate is 16mm,middle plate is 8mm(2-in-1 or 3-in-1 plate),down plate is 18mm;Material is Q345B Steel

Axle 13T/16T,FUWA/BPW Brand
Spring leaf 90(w)mm*13(thickness)mm*10Layer or 100mm*12mm*12
King pin Jost brand 2.0 0r 3.5 inch bolts type or welding type
Landing Gear without or choose JOST brand A300C or China brand 28Tons (Double speed) or optical
Suspension Mechanical suspension/America Type/Germany Type
Rim 9.00-22.5/8.00-20/8.5-20China Brand
Tire  12R22.5/315 80R22.5/11.00R20/12.00R20 Various tire brands are available
Pneumatic Braking system WABCO RE 6 relay valve;T30/30+T30 Spring brake chamber,45L air tank
ABS Optional
Tool box One piece,1m*0.5m*0.5m(Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar)
Painting Complete Chassis sand blasting to clean rust,1 coat of anticorrosive prime,2coats of final paint
Shipping term Transport by bulk cargo carrier or RORO The trailer size can be designed according to your special requirements.You can choose a 6*4 model truck for use with your rea dump semi trailer

More product of details,please contact us.We will offer you the most competitive pricing.
