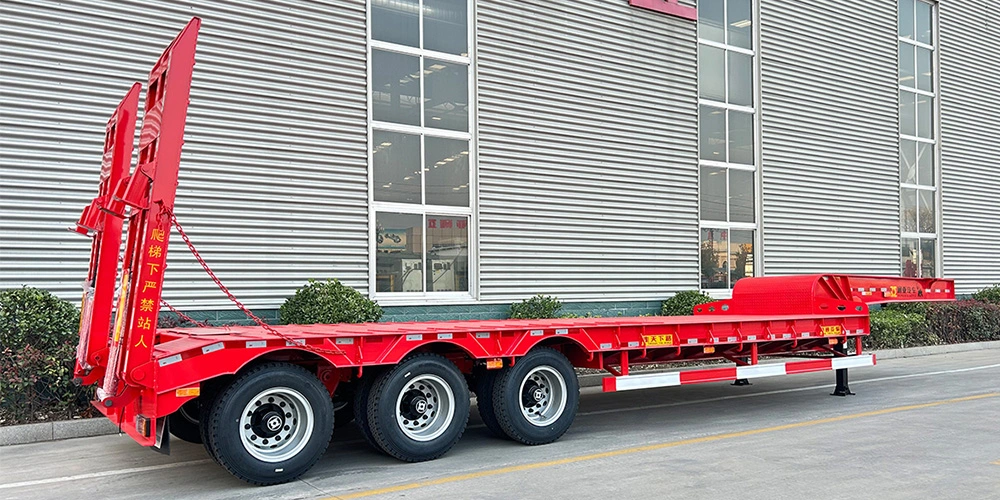

3 Axle 40 Ft Semi Low Bed Trailer Truck for Sale Price

Description

Specification
Weight:	Tare Weight	12.5T
	Loading capacity	50 T
	Total weight	62.5 T
Dimensions:	Outside dimension	1480030003380 mm (The final dimensions depend on the final design drawings)
Frame:	Design/welding technology	Heavy duty and extra durability designed; welding by automatic Submerged-Arc processes.
	Main beam	Opting for high strength Q345B steel, 520mm deep welded I-section main beams Top Flange thickness 20mm, width 140mm; Bottom Flange thickness 25mm, width 140mm.Middle Flange thickness 12mm;
	Cross beam	Heavy duty Special U steel
	Side beam	250mm high I beam
	Floor	5 mm thickness chequer plate
	Rear ladder (ramps)	Two pieces spring steel ladder, (Q345B steel)
OEM parts:	Axle	3 *13T capacity,
	King Pin	2.00’’/3.5’’ bolting king pin, JOST brand
	Suspension	Heavy duty undermount suspension with equalizers, American design (high-strength type)
	Steel Spring	10pcs leaf spring, 13mm thickness, 90mm width
	Landing legs	JOST brand, manual operation landing legs with sand shoe
	Tire specs	8.25R20., Triangle brand (Chinese famous brand)
	Number of wheel	13 pieces(including one spare wheel)
	Brake system	WABCO relay valve; Four double and two single brake chamber; Two units of ISO standard coppery air-connector.
	ABS system	Without（ Can be choose freely,450 USD/set）
	Electrical:	One unit of 24V 7-pin ISO 1185 socket; LED lights
Miscellaneous:	Painting	color advised by client
	Marking	Standard
	Side Guard	Standard
	Spare Tire Carriers	Two set of heavy duty spare wheel carriers
	Tools box	One piece (1. 00. 50. 5m), under the goose neck(with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar)
Note: All the details not mentioned will design as the final confirmation with the customer

50tons low bed trailer is an very popular model in the low bed trailers that we sold to our oversea customers !

In consideration of our customers are from different countries, and their government have different road safety rules and regulations, so the specifications of our 60tons low bed trailer is different too, as an manufacturer, we can design the trailers according to the different requirements.

low bed trailer for sale

Low center of gravity, the body is low and wide, the center of gravity of the load is lower, the vehicle driving stability is good, suitable for the transportation of large machinery and equipment, steel and so on.

50 ton low bed for sale

Large load capacity, sturdy structural design, can withstand large weight. Convenient loading and unloading, with a ladder at the rear, saving loading and unloading time.

The Most Powerful Factory in China

Established in 1982; Total assets of 70 million dollars; Factory covers an area of 400,000 square meters; Strong semi-trailer factory in China; One of the drafters of China's semi-trailer standard.

We have our own production workshop

We have our own production workshop with short production cycle and will deliver to you in the shortest time.
