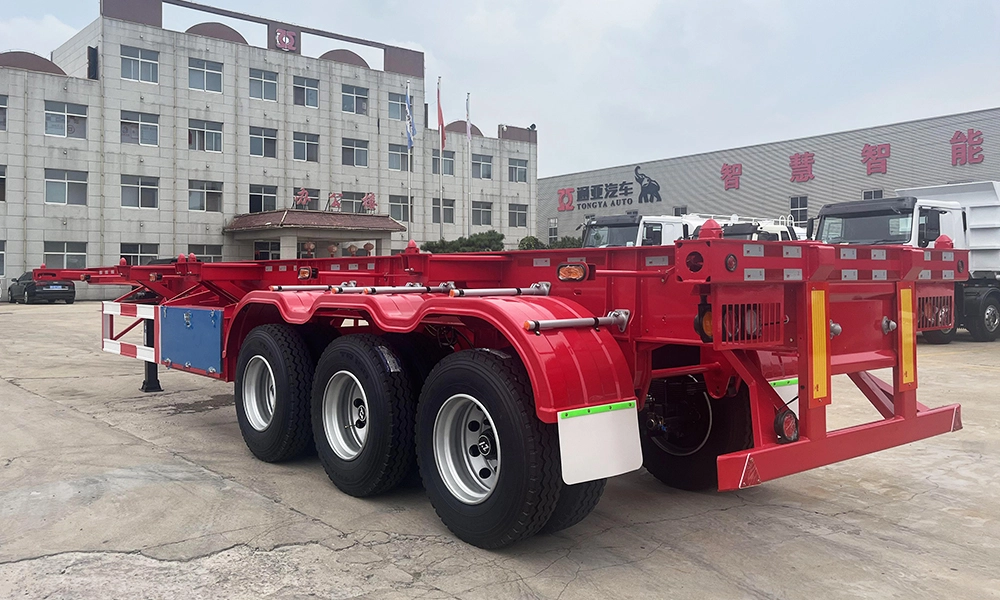

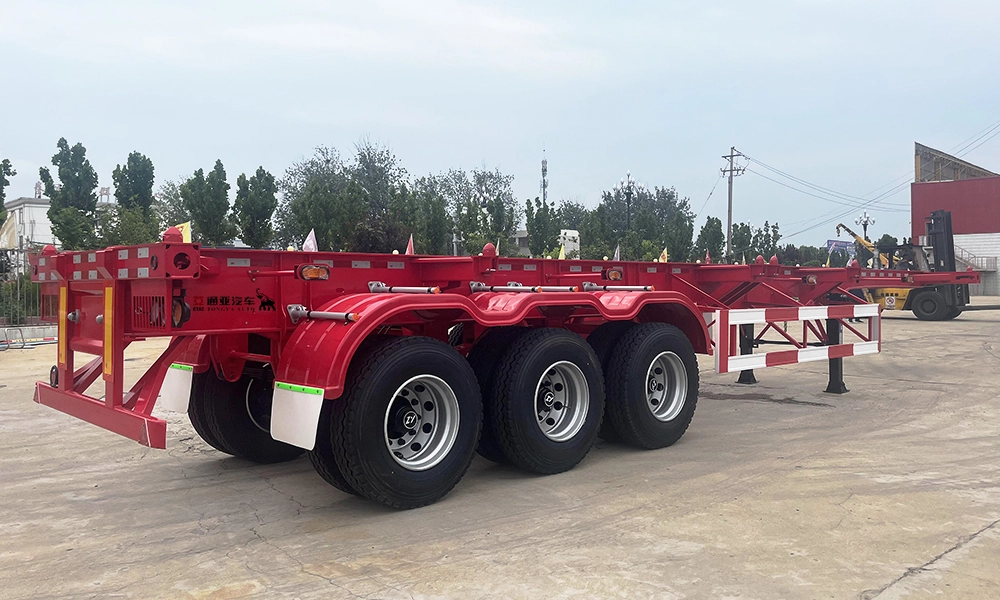

40Ft Container Skeleton Trailer for Sale in Tanzania

Description

TONGYA skeletal trailer can be configured for specific container combinations, minimizing the unladen weight. Can be configured individually for: 20h, 30′, 40′, 45′, 2×20′ or any combination of all of these containers.
The overall structure of the skeleton trailer is straight beam or gooseneck, it is mainly used in the logistics systems of ships, ports, routes, highways, transit stations, bridges, tunnels and multimodal transport.
If you have special needs for a skeleton semi-trailer with a gooseneck, we can design it for you according to your requirements.

40Ft Container Skeleton Trailer of Specification:

Tare Weight	About 6.5tons
Outer side dimension	1245024901400mm
Loading Capacity(Ton)	≦45T(40FT)
Axles	13T/PER, Tongya or FUWA or BPW brand
Tire	12R22.5 or 315/80R22.5 Triangle brand
Rim	9.00-22.5 China Brand
Suspension	Mechanical suspension
Spring leaf	90(W)mm*13(Thickness)mm 10 pcs leaf spring
King pin	JOST brand 2.0 or 3.5
Landing legs	JOST brand A300C
Main Beam	Height:500mm,upper plate is 14mm,middle plate is 8mm,down plate is 16mm;Material is Q345B Steel.
Brake chamber	WABCO relay valve
Twist Locks	12 units ISO twist locks
ABS	Optional
Light	LED light
Voltage	24V
Electrical	One unit of 27V 7-pin ISO 1185 socket
Tool box	One piece, 1m0.5m0.5m (Size can be choose freely)
Painting	Sand blasting before painting;one casts of primer,anti-corrosion;two coats of finish painting;color advised by client.

40Ft Container Skeleton Trailer of Advantages:

1. Light weight, can increase the cargo loading capacity, improve the efficiency of transportation;

2. High space utilization rate, open skeleton structure, can be adapted to different sizes and specifications of the container, can make full use of space, to achieve efficient transportation;

3. High loading and unloading efficiency, which can greatly shorten the loading and unloading time of goods and improve the logistics efficiency.

40Ft Container Skeleton Trailer for Sale | 12M Skeletal Trailer for Sale | 40Ft 2 Axle Gooseneck Skeletal Trailer

The Most Powerful Factory in China

Established in 1982; Total assets of 70 million dollars; Factory covers an area of 400,000 square meters; Strong semi-trailer factory in China; One of the drafters of China's semi-trailer standard.

We have our own production workshop

We have first class fully automatic laser cutting machine, Laser locating welding machine, fully automatic welding robot, large-sine Bending Machine and Board Press machine in china and tanker body automatic welding tipper, powder spray and baking varnish room, Switzerland four-wheel ATD-GPS and 1200 sets TEST EQUIPMENT which are advanced technology and Hi-Tech equipment.
