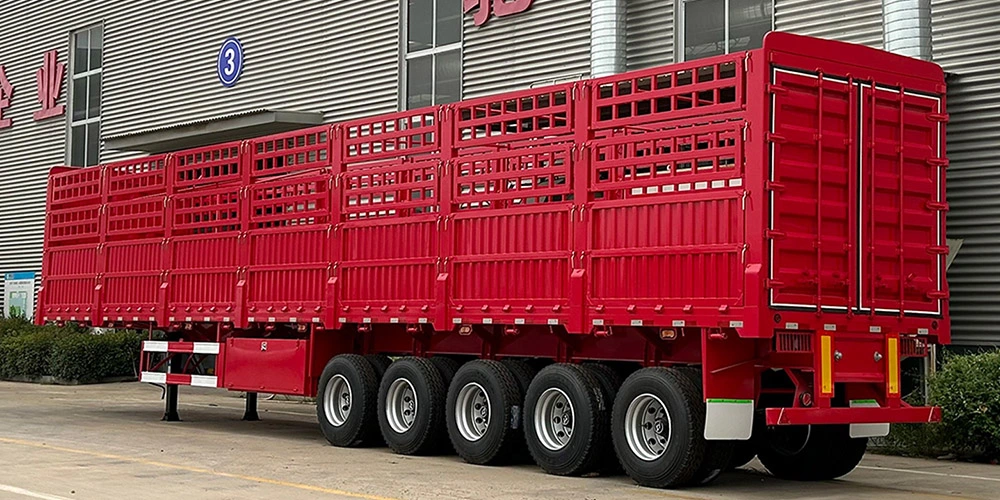

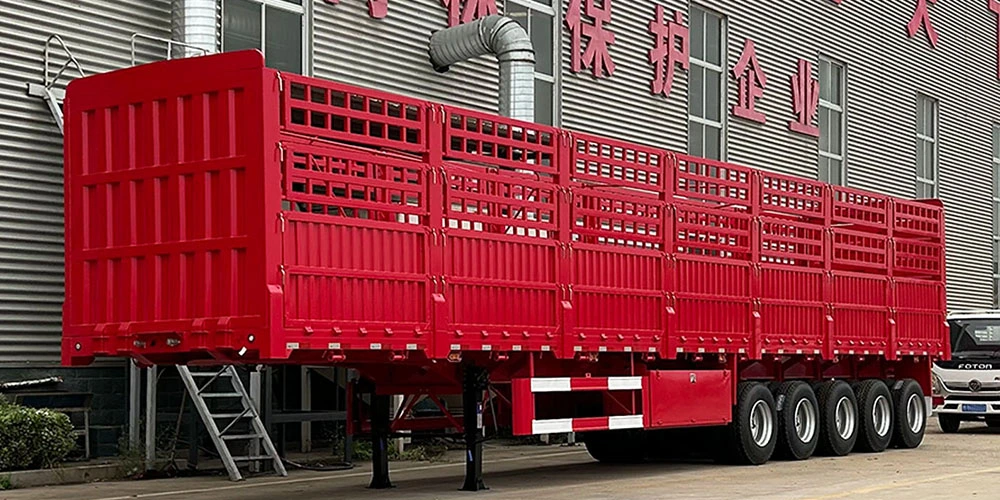

5 Axle Fence Semi Trailer for Sale Price

Description

5 Axle Fence Semi Trailer Advantages:

1. 5 Axle Fence Semi Trailer is generally used to transport bulk cargo. It is mainly used for long-distance transportation;
2. 5 Axle Fence Semi Trailer with Bulk Cargo can support substantial weight, usually ranging from 60 to 80 tons or more, depending on the specific design and materials used. This makes them ideal for transporting bulky or heavy items, including construction materials, equipment, and pallets.

5 Axle Fence Semi Trailer Specification:

Specification
Outside Dimension	1600025004200mm(the final dimension is according the final drawing picture)
Loading capacity	80tons
Axle	5 Axles
Suspension	Mechanical suspension
Main beam	Height: 500mm, upper plate is 16mm, middle plate is 10mm,down plate is 18mm ; Q345 steel
Side beam	18# channel steel
Side Wall Fence	Side wall height: 2000mmSide fence height: 700mmTotal height: 2700mmThickness: 1.2mm
Bottom platform	3mm patterned platform
Tire	12R22.5 16pcs
Rim	9.0*22.5 16pcs
Speing leaf	90(W)mm13(Thickness)mm10 Layer
King pin	JOST brand 2.0 or 3.5inch bolts type or Welding type
Landing gear	JOST A300C Or TONGYA 28T
Pneumatic Braking System	WABCO RE 6 relay valve, Spring brake chamber; one piece of 45L air tanks
Accessories	One standard tool box; one spare wheel carrier; 24 weld on winchRope hook
Painting	Spray powder
Voltage	24V
Receptacle	7 ways

Please contact us for specific detailed parameters, we will give you the best price.

We have our own factory, welcome to visit us.

5 Axle Side Wall Semi Trailer with Bulk Cargo 5 Axle Side Wall Semi Trailer with Bulk Cargo 5 Axle Side Wall Semi Trailer with Bulk Cargo 5 Axle Side Wall Semi Trailer with Bulk Cargo › 5 Axle Side Wall Semi Trailer with Bulk Cargo

Mainly used for agricultural and sideline products and other light bubble goods transport.

80 Ton Fence Cargo Semi Trailer for Sale Price

Available for customization: including color and tire specifications, axles and dimension.

The Most Powerful Factory in China

Established in 1982; Total assets of 70 million dollars; Factory covers an area of 400,000 square meters; Strong semi-trailer factory in China; One of the drafters of China's semi-trailer standard.

We have our own production workshop

We have first class fully automatic laser cutting machine, Laser locating welding machine, fully automatic welding robot, large-sine Bending Machine and Board Press machine in china and tanker body automatic welding tipper, powder spray and baking varnish room, Switzerland four-wheel ATD-GPS and 1200 sets TEST EQUIPMENT which are advanced technology and Hi-Tech equipment.
