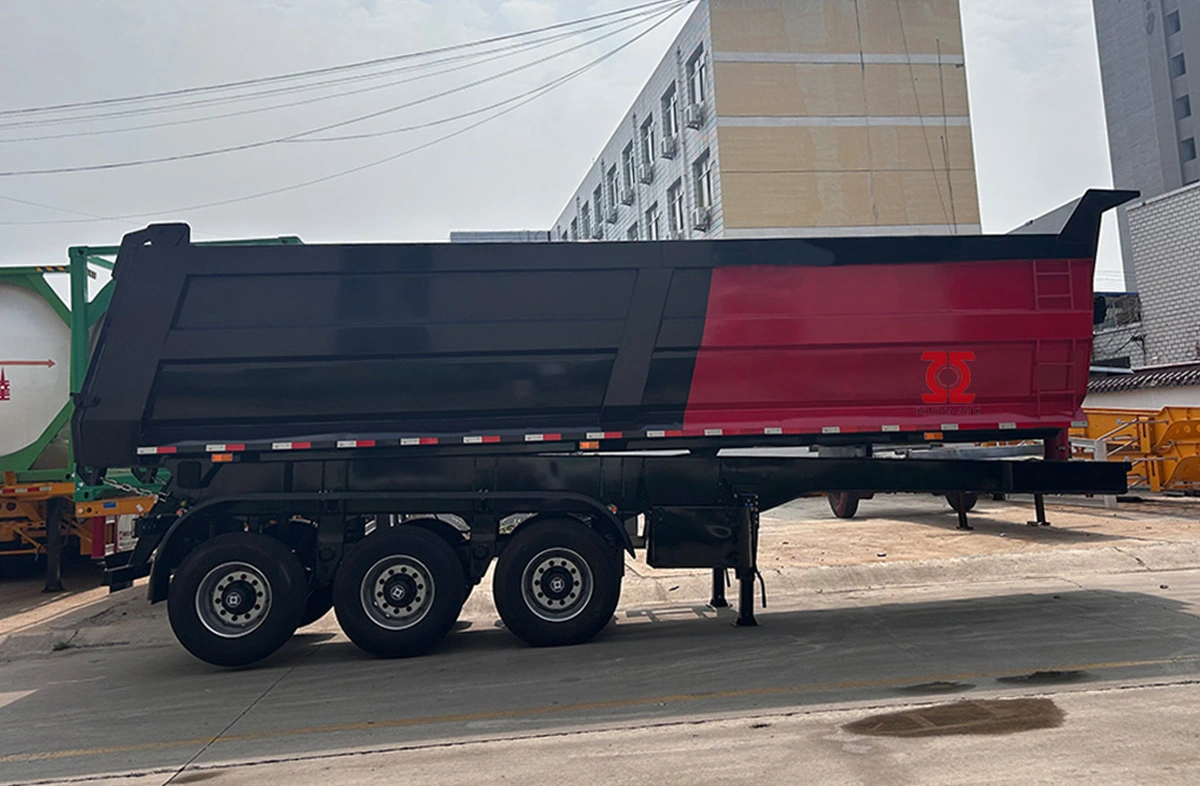

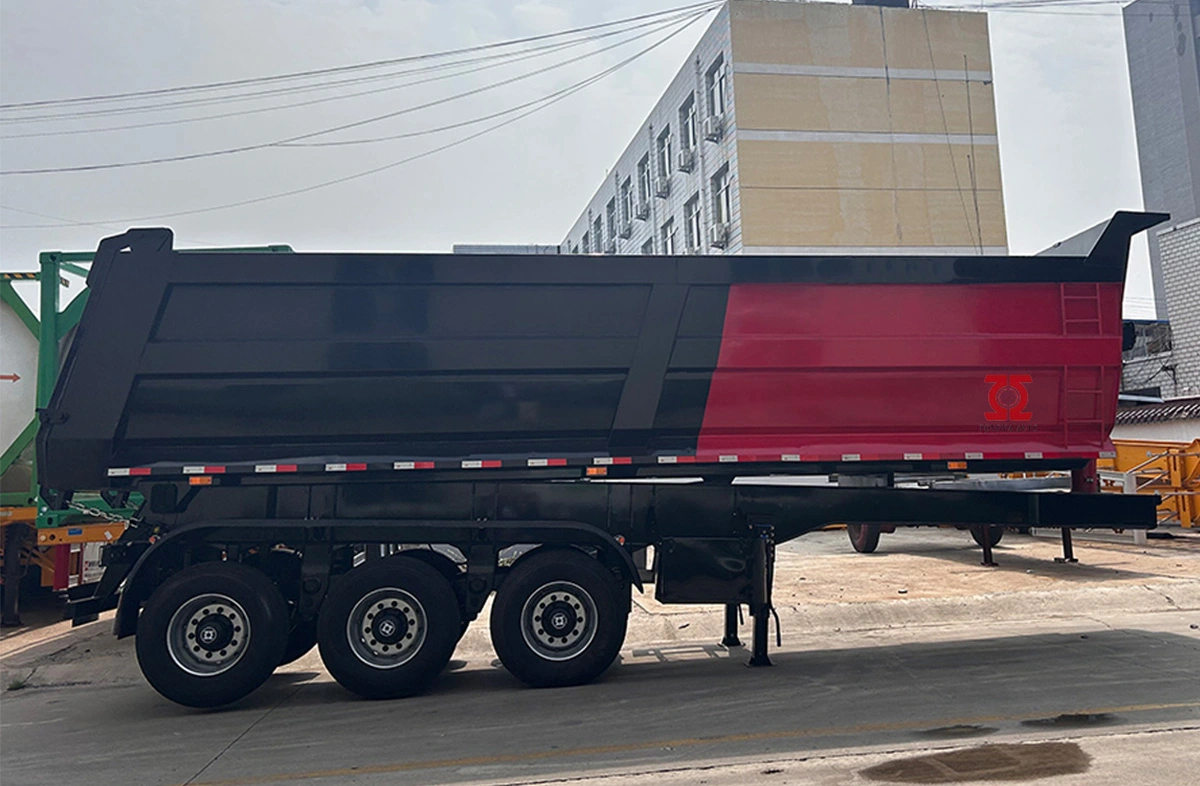

End Dump Truck Semi Trailers Advantages:
40T dump semi trailer hydraulic lifting and unloading, which is suitable for gravel, coal and other bulk material transportation. High-strength steel frame, three-axle balanced load-bearing, anti-rollover design, high unloading efficiency, chassis compliance can be licensed, taking into account the durability and safety.
End Dump Truck Semi Trailers Specification:
|
Dimension |
11280*2495*3970mm ( outside) 10500*2300*1700mm (work space ) or customize |
|
Tare weight |
About 10T |
|
Total Volume(m3) |
37 m³ or less than 40tons |
|
Side wall thickness(mm) |
6mm Q235 steel |
|
Bottom plate thickness(mm) |
8mm /Q235 steel |
|
Lifting system |
Full set of Hyva (FC214-5-07130) Hydraulic Lifting Cylinder |
|
Main Beams |
Height:500mm, upper plate is 16mm,middle is 8mm(double+three plate),down plate is 18mm,material is Q345B steel |
|
Axle |
3 axles, FUWA/HUAJING brand 16tons per axles |
|
Landing Gear |
JOST A300C or TONGYA 28T |
|
King Pin |
JOST 2.00 or 3.5 inch bolt-in king pin |
|
Suspension |
Mechanical suspension/ America type |
|
Leaf Spring |
90(W)mm*13(Thickness)mm*10 Layer |
|
Pneumatic Braking System |
WABCO RE 6 relay valve; Spring brake chamber; one piece of 45L air tanks. |
|
Rim |
9.00-22.5/8.00-20/8.5-20 China Brand |
|
Tire |
12R22.5/315 80R22.5/11.00R20 /12.00R20 Brand can be Optional |
|
ABS |
Optional |
|
Painting |
Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
|
Accessories |
One standard tool box |
|
Shipping Terms |
By Bulk Cargo or roro, the trailer size can be design according to your special requirement , the tractor truck can be choose 6*4 model . |
