Flatbed Semi Trailer with Ladder for Saudi Arabia

Description

3 Axle Flatbed Semi Trailer with Ladder Specification:

Specification
Tare weight (kg)		approx 8,500 kg
Payload (kg)		60,000
Main beam		Height 520mm, Q345B
Side beam		18# channel steel
Platform		3mm diamond platform
Twist lock		12 pcs
Landing gear	JOST A300C
Kingpin	50# or 90#
Brake system	Dual air brake system, WABCO brake valve
ABS	According to customer’s request
Suspension	Air suspension
Axle	13T, 3axles, FUWA
Tire	385/65R22.5,TRIANGLE
Toolbox	1 steel box

2025 New Model Tri Axle Flatbed Trailer for Sale

3 Axle Flatbed Semi Trailer with Ladder is popular in Asia. It was designed according to the overseas local road condition. We can also supply customized semi trailer solution according to customer's transportation demand . So, it can makes the transportation much more easier.

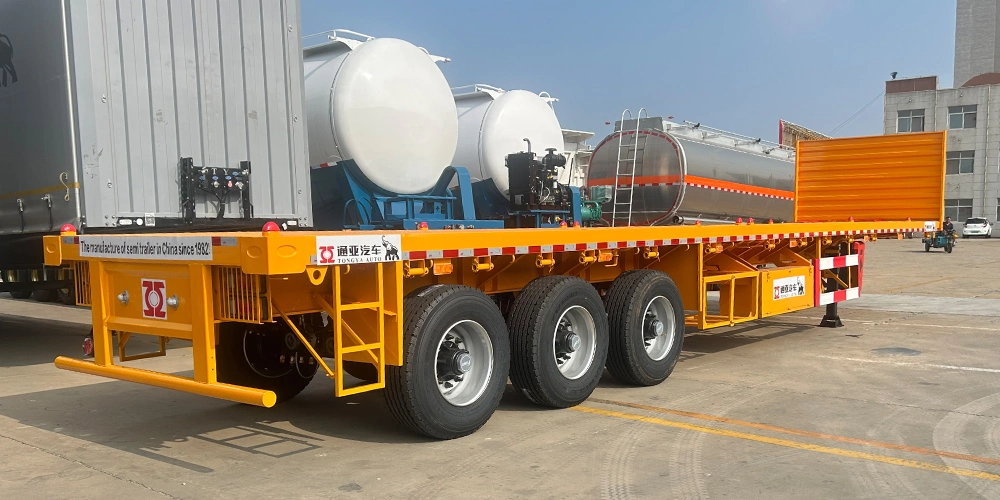

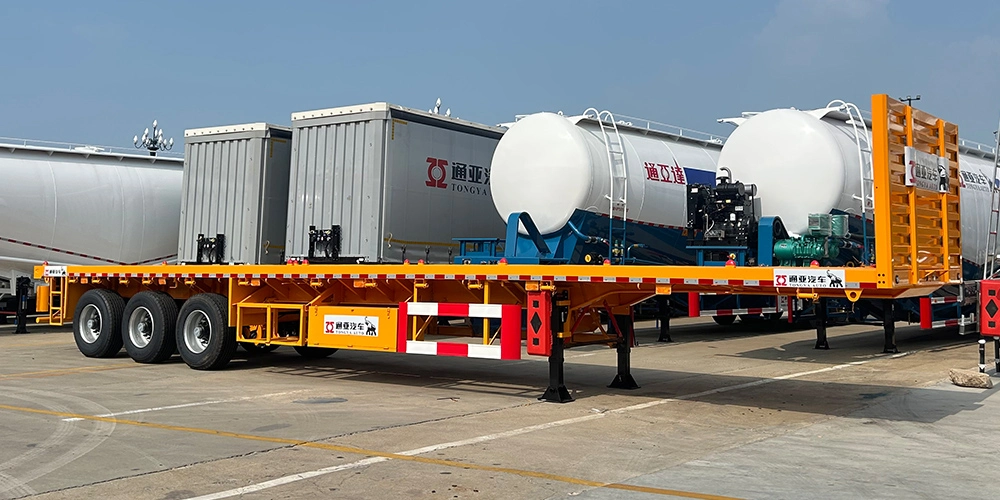

Flatbed Semi Trailer with Ladder

Made from high-strength materials, TONGYA semi flatbed trailer is designed to withstand heavy loads and harsh conditions. The quality of materials and workmanship leads to a longer operational life compared to conventional trailers.

The Most Powerful Factory in China

Established in 1982; Total assets of 70 million dollars; Factory covers an area of 400,000 square meters; Strong semi-trailer factory in China; One of the drafters of China's semi-trailer standard.

We have our own production workshop

We have first class fully automatic laser cutting machine, Laser locating welding machine, fully automatic welding robot, large-sine Bending Machine and Board Press machine in China and tanker body automatic welding tipper, powder spray and baking varnish room, Switzerland four-wheel ATD-GPS and 1200 sets TEST EQUIPMENT which are advanced technology and Hi-Tech equipment.
