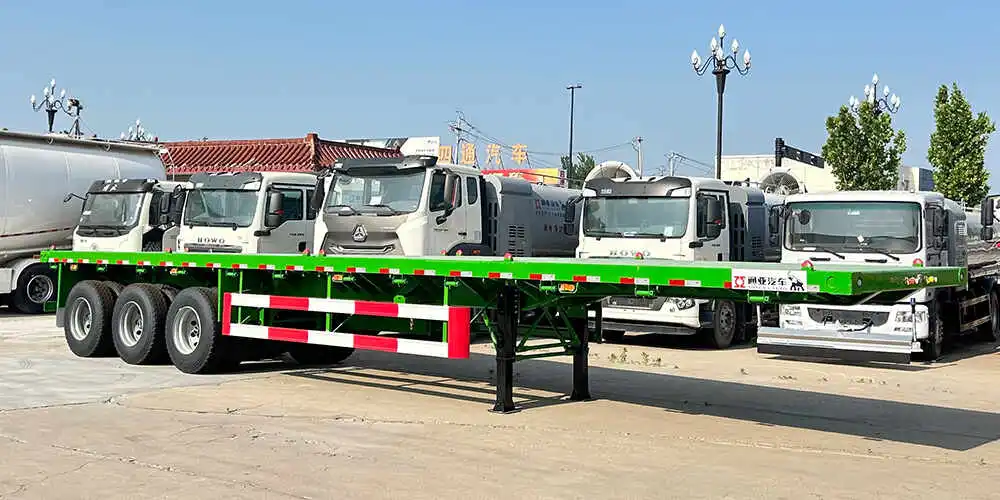

Flatbed Trailer for Sale in Nigeria

Description

Made from high-strength materials, TONGYA semi flatbed trailer is designed to withstand heavy loads and harsh conditions. The quality of materials and workmanship leads to a longer operational life compared to conventional trailers.

Specification:

Manufacturer	Tongya Automobile CO., LTD.
Tare Weight	Approx. 7.3 T
Dimension	1200025001550mm
Loading Capacity	40t
Axle	13T, 3axles, Fuwa brand
Rim	9.00*22.5
Tire	12R22.5, 13PCS Triangle brand
Suspension	Mechanical suspension
Leaf Spring	90(width)mm13(thickness)mm10 layer(especial for exporting market)
King pin	2.0 or 3.5inch JOST brand
Main beam	Height is 500mm, material is Q345B steel
Side beam	16mm channel steel (Material is Q235B steel)
Bottom Platform	3mm checquered steel plate
Twist lock	12PCS
Brake chamber	Wabco re 6 relay valve; T30/30+T30 spring brake chamber; two units of 45L air tanks
ABS	Optional
Valve	Wabco valve (especial for exporting market)
Light	LED Light (especial for exporting market)
Voltage	24V
Receptacle	7 ways (7 wire harness)
Tool box	One piece 1m 0.5m0.5m ( size can be customized)
Painting	Spray powder
Shipping terms	By bulk vessel, RORO, or 40HQ container
Any parts fitted could according to clients request, contact us to get more.

tri axle flatbed trailer

We can design and produce semi trailer specifically according to your requirement! 4,8 or 12 pieces container locks can be choose, We can also make special design for you according to your special requirements.

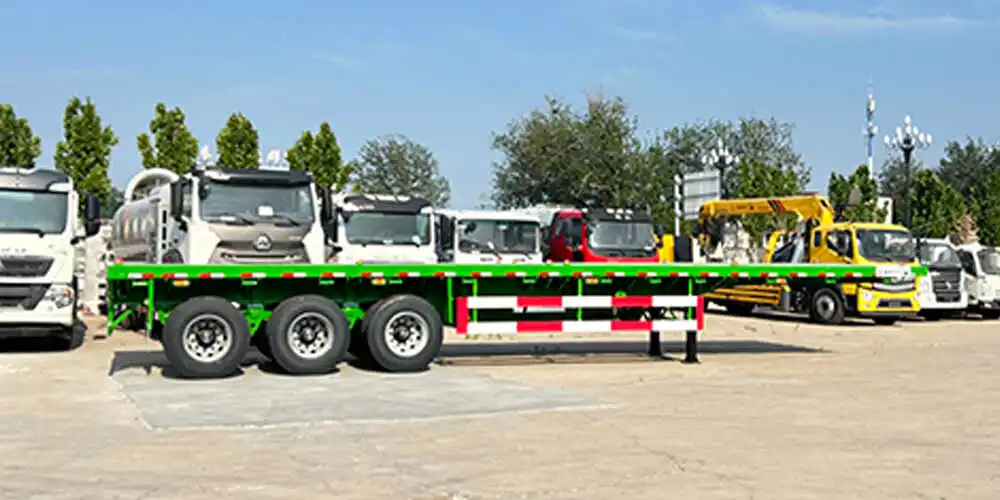

12 metre flatbed 3 axle truck trailers

3axles flat bed trailer with multi-function. It's designed to carry long log, tube, 20ft and 40ft container or bulk cargo. Its rated max loading capacity is 70 tons, and could up to 90 tons. This kind of trailer is designed for West African customers. The local road is not flat enough, so, we did series of reinforcement process to ensure its durability.

The Most Powerful Factory in China

Established in 1982; Total assets of 70 million dollars; Factory covers an area of 400,000 square meters; Strong semi-trailer factory in China; One of the drafters of China's semi-trailer standard.

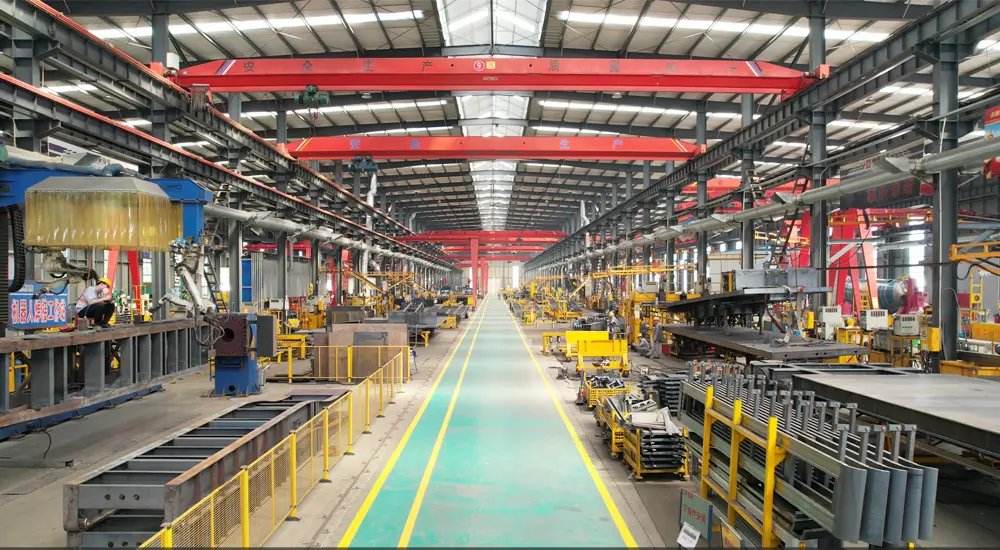

We have our own production workshop

We have first class fully automatic laser cutting machine, Laser locating welding machine, fully automatic welding robot, large-sine Bending Machine and Board Press machine in china and tanker body automatic welding tipper, powder spray and baking varnish room, Switzerland four-wheel ATD-GPS and 1200 sets TEST EQUIPMENT which are advanced technology and Hi-Tech equipment.
