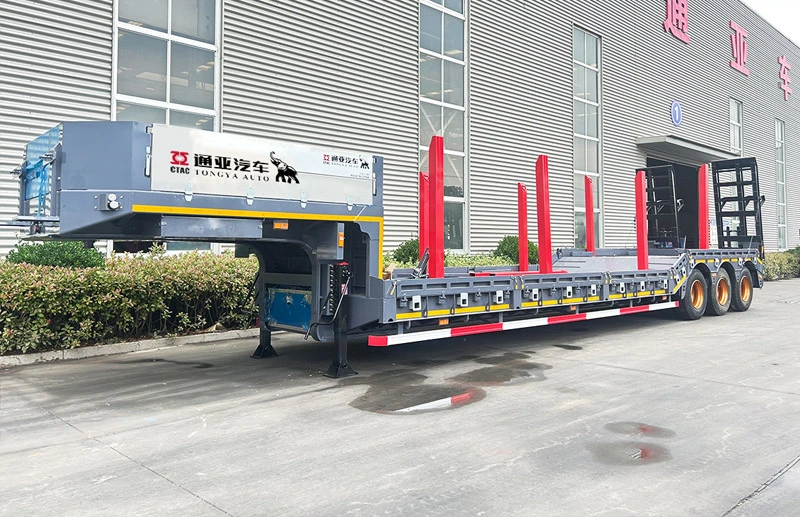

High Low High Low Bed Semi Trailer with Column

Description

High Low High Low Bed Semi Trailer of Advantages:

1, truck trailer for carry excavator, loader, bulldozer and other heavy machinery;
2, 40-80T loading capacity，size:13*3m, 820mm loading deck height;
3, customization is acceptable for ,loading capacity ,size and style;
4, China leading semi trailer manufacturer since 1982, export business start from 2006;
5, with more than 400 welders to make sure delivery on time.

High Low High Low Bed Semi Trailer of Specification:

Weight:	Tare Weight	11T
	Loading capacity	60 T
	Total weight	71T
Dimensions:	Outside dimension	1300030002950 mm (The final dimensions depend on the final design drawings)
Frame:	Main beam	Opting for high strength Q345B steel, 520mm deep welded I-section main beams Top Flange thickness 20mm, width 140mm; Bottom Flange thickness 20mm, width 140mm.Middle Flange thickness 12mm;
	Cross beam	Heavy duty Special U steel
	Side beam	250mm high I beam
	Floor	5 mm thickness chequer plate

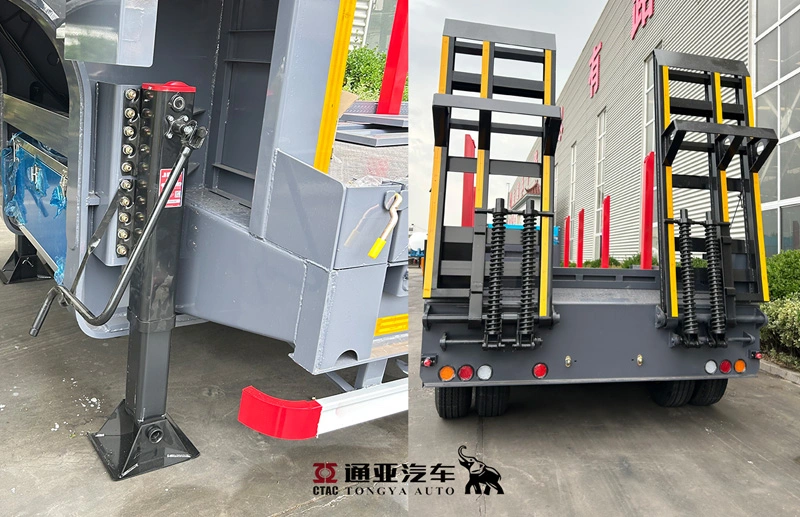

	Rear ladder (ramps)	Two pieces spring steel ladder, (Q345B steel)
OEM parts:	Axle	3 *13T capacity, FUWA brand (Chinese best brand)
	King Pin	2.00’’/3.5’’ bolting king pin, JOST brand
	Suspension	Heavy duty undermount suspension with equalizers, American design (high-strength type)
	Steel Spring	10pcs leaf spring, 13mm thickness, 90mm width
	Landing legs	JOST brand, manual operation landing legs with sand shoe
	Tire specs	315/80R22.5, Triangle brand (Chinese famous brand)
	Number of wheel	13 pieces(including one spare wheel)
	Brake system	WABCO relay valve; Four double and two single brake chamber; Two units of ISO standard coppery air-connector.
	ABS system	Without（Can be choose freely,450 USD/set）
	Electrical:	One unit of 24V 7-pin ISO 1185 socket; LED lights
Miscellaneous:	Painting	color advised by client
	Marking	Standard
	Side Guard	Standard
	Spare Tire Carriers	Two set of heavy duty spare wheel carriers
	Tools box	One piece (1. 00. 50. 5m), under the goose neck(with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar)
Note: All the details not mentioned will design as the final confirmation with the customer

More product of details,please contact me.
