120 Tons Hydraulic Low Bed Trailer for Sale in Algeria

Description

Hydraulic Low Bed Trailer Advantages:

1, 60Tons or more loading capacity, customization is acceptable for style ,loading capacity and size;
2, China leading manufacturer since 1982;
3, Shipping via RO-RO or bulk ship;
4, With hydraulic gooseneck.

Specification:

Weight:	Tare Weight	12T
	Loading capacity	60 T
	Total weight	72 T
Dimensions:	Outside dimension	1300030003180 mm (The final dimensions depend on the final design drawings)
Type	Gooseneck	Hydraulic gooseneck
Frame:	Design/welding technology	Heavy duty and extra durability designed;welding by automatic Submerged-Arc processes.
	Main beam	Opting for high strength Q345B steel, 520mm deep welded I-section main beams Top Flange thickness 20mm, width 140mm; Bottom Flange thickness 25mm, width 140mm.Middle Flange thickness 12mm;
	Cross beam	Heavy duty Special U steel
	Side beam	250mm high I beam
	Floor	5 mm thickness chequer plate
	Front ladder (ramps)	Two pieces
OEM parts:	Axle	3 *13T capacity, FUWA brand (Chinese best brand)
	King Pin	2.00’’/3.5’’ bolting king pin, JOST brand
	Suspension	Heavy duty undermount suspension with equalizers, American design (high-strength type)
	Steel Spring	10pcs leaf spring, 13mm thickness, 90mm width
	Landing legs	JOST brand, manual operation landing legs with sand shoe
	Tire specs	315/80R22.5., Triangle brand (Chinese famous brand)
	Rim	9.0-22.5(Chinese famous brand)
	Number of wheel	13 pieces(including one spare wheel)
	Brake system	WABCO relay valve; Four double and two single brake chamber; Two units of ISO standard coppery air-connector.
	ABS system	Without（Can be choose freely,450 USD/set）
	Electrical:	One unit of 24V 7-pin ISO 1185 socket; LED lights
Miscellaneous:	Painting	color advised by client
	Marking	Standard
	Side Guard	Standard
	Spare Tire Carriers	Two set of heavy duty spare wheel carriers
	Tools box	One piece (1. 00. 50. 5m), under the goose neck(with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar)
Note: All the details not mentioned will design as the final confirmation with the customer

In consideration of our customers are from different countries, and their government have different road safety rules and regulations, so the specifications of our low bed trailer is different too, as an manufacturer,we can design the trailers according to the different requirements.

Hydraulic gooseneck

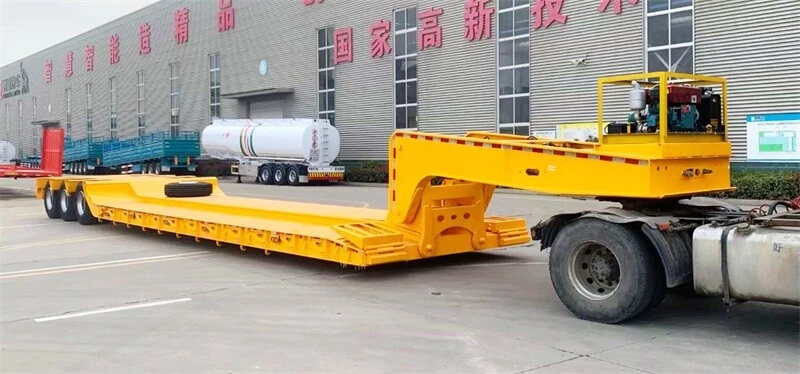

Hydraulic Low Bed Trailer

Our engineers will design the main beam for our 60tons low bed trailer depend on the load capacity that provided by the end user customer, we choose Q345B high tensile steel in an thicken thickness, with automatic Submerged-Arc welding processes, to make sure the for our 60tons low bed trailer with an strong loading deck.

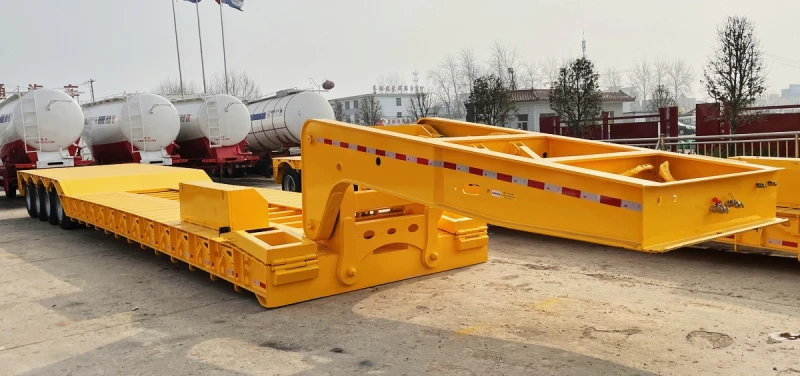

Hydraulic Gooseneck Trailer

We Use 100% famous brand spare parts for our products, like JOST, WABCO, BPW, FUWA, Double coin for our low bed trailer! Products fully comply with relevant national standard GB1589, GB/T6420 ! at the same time to meet the individual needs of customers.

The Most Powerful Factory in China

Established in 1982; Total assets of 70 million dollars; Factory covers an area of 400,000 square meters; Strong semi-trailer factory in China; One of the drafters of China's semi-trailer standard.

We have our own production workshop

We have first class fully automatic laser cutting machine, Laser locating welding machine, fully automatic welding robot, large-sine Bending Machine and Board Press machine in china and tanker body automatic welding tipper, powder spray and baking varnish room, Switzerland four-wheel ATD-GPS and 1200 sets TEST EQUIPMENT which are advanced technology and Hi-Tech equipment.
