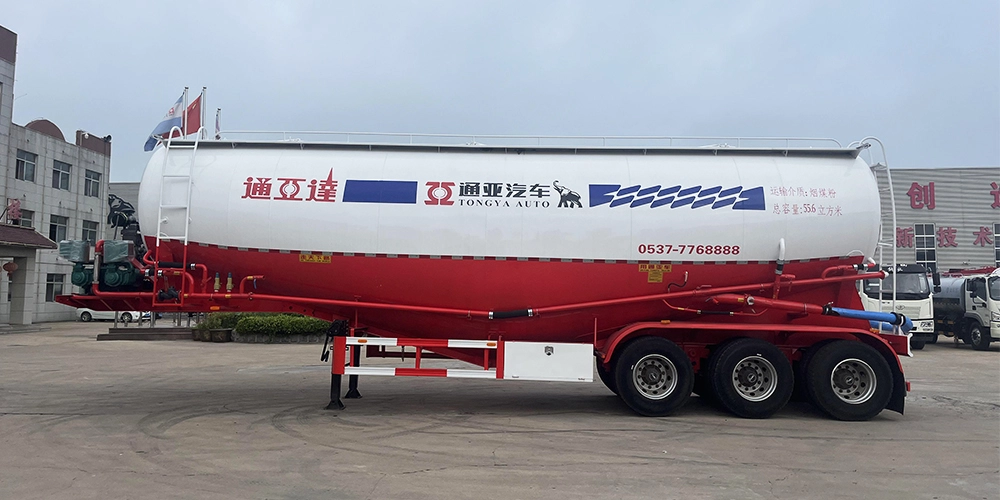

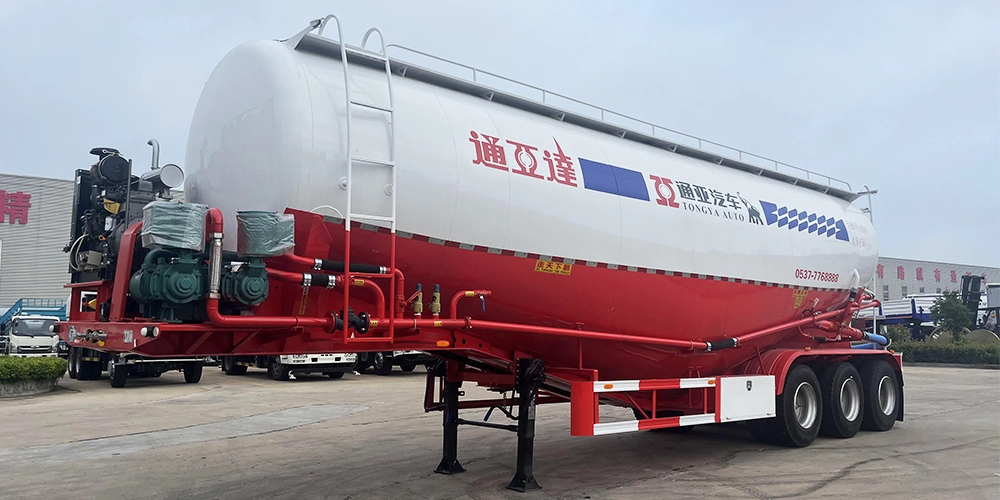

40m3/50m3 Cement Bulk Tanker Trailers Carrier Truck for Sale In Ghana

Description

Powder Tanker Advantages:

1, Customization is acceptable for tanker capacity and style
2, China leading manufacturer since 1982, top 1 sales in China market since 2012
3, Engine and compressor is available, PTO via truck tractor optional
4, Fast discharging, <0.3% retention volume, 18 days delivery time

Powder Tanker Specification:

Weight:	Tare Weight	13T
	Loading capacity	60 T
	Total weight	63 T
Dimensions:	Dimension	13000×2500*3800mm (The final dimensions depend on the final design drawings)
Dimensions:	Tanker capacity	56m3 (56000L)
Tanker body:	Design/welding technology	Heavy duty and extra durability designed;welding by automatic Submerged-Arc processes.
	Tanker body	The tanker body made of 5mm, tanker ends made of 6mm thickness steel, Q235 steel
	Bottom chassis	High strength Q345B steel
	Tanker shape	“V” shape
	Silo	1 silo
	Manhole:	3 pieces, (Diameter is 500mm)
	Discharge mouth	4 inch Discharge mouth
	Safety pressure valve	Standard
	Discharge hose	8m with Hose carries, the length is according to customer requirement
	Air compressor	12m3 double-cylinder air compressor, Bohai brand
	Engine	Diesel Engine,Weichai 4102 engine
	Rear ladder and handrail	Standard
	Retention volume	<0.3%
OEM parts:	Axle	3* 13 tons capacity, FUWA brand (Chinese best brand)
	King Pin	2.00 /3.5 inch, bolting king pin, JOST brand
	Suspension	Heavy duty suspension with equalizers, American design (high-strength type)
	Steel Spring	Six sets of 10pcs leaf spring, 16mm thickness, 90mm width
	Landing legs	JOST brand, manual operation landing legs with sand shoe
	Tire specs	12R22.5, or 315/80R22.5 Triangle brand
	Rim	9.0-22.5
	Number of wheel	13 pieces(including one spare wheel)
	Brake system	WABCO relay valve; Four double and two single brake chamber; One unit of reliable local brand 45L air tank; Two units of reliable local brand standard coppery air-connector.
	ABS system	Without（Can be choose freely,450 USD/set）
	Electrical:	One unit of 24V 7-pin ISO 1185 socket; LED light (standard rear light, turn light, rear reflector, side light, side reflector etc.)
Miscellaneous:	Painting	color advised by client
	Marking	Standard
	Side Guard	Standard
	spare wheel carrier	Two set of heavy duty spare wheel carriers, including a riser.
	Tools box	One piece (1. 00. 50. 5m)(equipped with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar)
Note: All the details not mentioned will design as the final confirmation with the customer

powder tanker

As the manufacturer, customization is acceptable for style, tanker capacity capacity. we can design the cement trailer with engine and compressor, and if you want make the more lighter for the truck tractor plus tanker trailer, PTO via truck tractor is also available.

Bulk Cement Tanker Semi Trailer

Our engineers will design the tanker body and under chassis for our cement trailer depend on the load capacity that provided by the end user customer, we choose Q345B high tensile steel in an thicken thickness, with automatic Submerged-Arc processes.

The Most Powerful Factory in China

Established in 1982; Total assets of 70 million dollars; Factory covers an area of 400,000 square meters; Strong semi-trailer factory in China; One of the drafters of China's semi-trailer standard.

We have our own production workshop

We have first class fully automatic laser cutting machine, Laser locating welding machine, fully automatic welding robot, large-sine Bending Machine and Board Press machine in china and tanker body automatic welding tipper, powder spray and baking varnish room, Switzerland four-wheel ATD-GPS and 1200 sets TEST EQUIPMENT which are advanced technology and Hi-Tech equipment.
