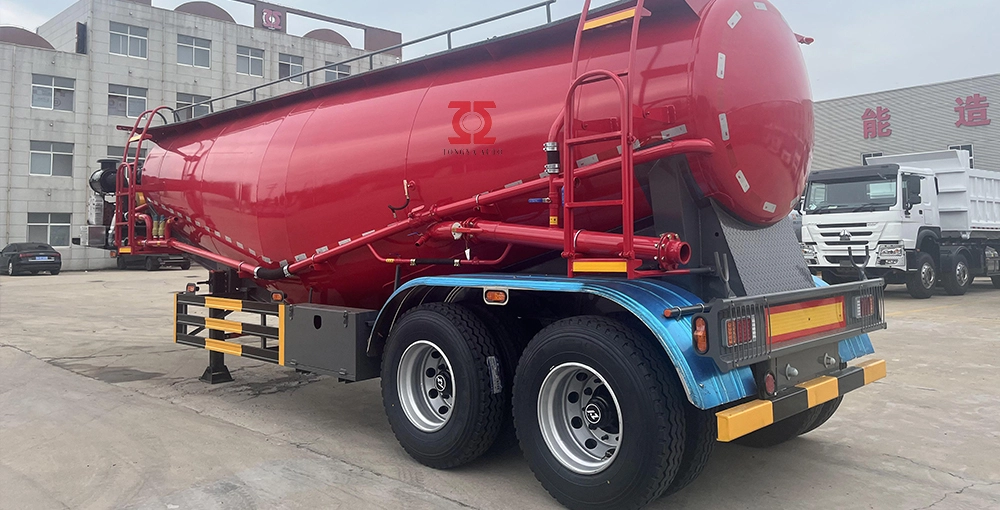

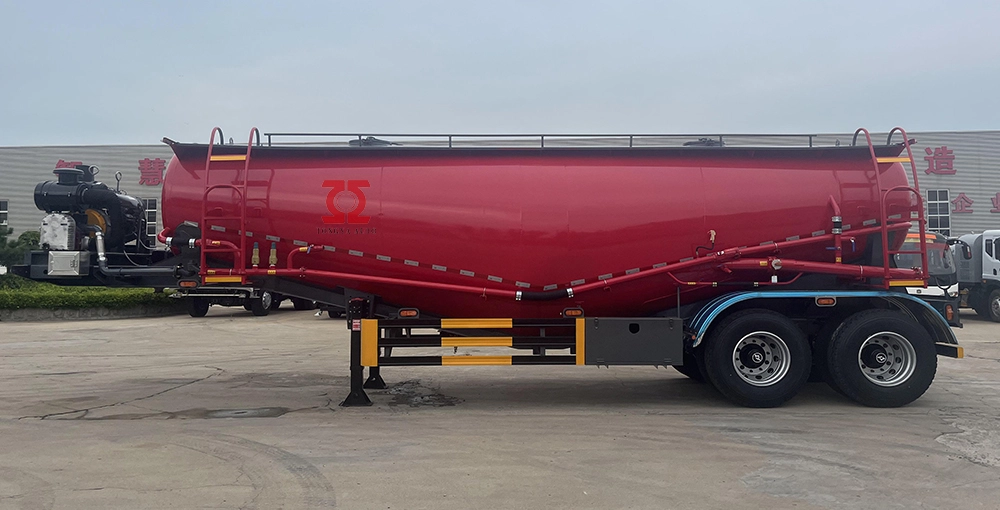

TONGYA Bulk Cement Tanker Semi Trailer Advantages:
1, Customization is acceptable for tanker capacity and style;
2, China leading manufacturer since 1982, top 1 sales in China market since 2012;
3, Engine and compressor is available, PTO via truck tractor optional;
4, Fast discharging, <0.3% retention volume, 18 days delivery time.
| Specification | ||
| Weight: | Tare Weight | 8T |
| Loading capacity | 28 T | |
| Total weight | 36 T | |
| Dimensions: | Dimension | 8000×2500*3700mm (The final dimensions depend on the final design drawings) |
| Tanker capacity | 28m3 (28000L) | |
| Tanker body: | Design/welding technology | Heavy duty and extra durability designed;welding by automatic Submerged-Arc processes. |
| Tanker body | The tanker body made of 4mm, tanker ends made of 5mm thickness steel, Q235 steel | |
| Bottom chassis | High strength Q345B steel | |
| Tanker shape | “V” shape | |
| Silo | 1 silo | |
| Manhole: | 2 pieces, (Diameter is 500mm) | |
| Discharge mouth | 4 inch Discharge mouth | |
| Safety pressure valve | Standard | |
| Discharge hose | 8m with Hose carries, the length is according to customer requirement | |
| Air compressor | screw compressor | |
| Engine | 4L912T, Deutz brand | |
| Rear ladder and handrail | Standard | |
| Retention volume | <0.3% | |
| OEM parts: | Axle | 3* 13 tons capacity, FUWA brand (Chinese best brand) |
| King Pin | 2.00 /3.5 inch, bolting king pin, JOST brand | |
| Suspension | Heavy duty suspension with equalizers, American design (high-strength type) | |
| Steel Spring | Four sets of 10pcs leaf spring, 13mm thickness, 90mm width | |
| Landing legs | JOST brand, manual operation landing legs with sand shoe | |
| Tire specs | 12R22.5 Triangle brand | |
| Rim | 9.0-22.5 | |
| Number of wheel | 9pieces(including one spare wheel) | |
| Brake system | WABCO relay valve; Four double brake chamber; One unit of reliable local brand 45L air tank; Two units of reliable local brand standard coppery air-connector. | |
| ABS system | Without（Can be choose freely,450 USD/set） | |
| Electrical: | One unit of 24V 7-pin ISO 1185 socket; LED light (standard rear light, turn light, rear reflector, side light, side reflector etc.) | |
| Miscellaneous: | Painting | color advised by client |
| Marking | Standard | |
| Side Guard | Standard | |
| spare wheel carrier | Two set of heavy duty spare wheel carriers, including a riser. | |
| Tools box | One piece (1. 0*0. 5*0. 5m)(equipped with 1 Tire spanner,1 gudgeon sleeve and 1 cranking bar) | |
| Note: All the details not mentioned will design as the final confirmation with the customer | ||
