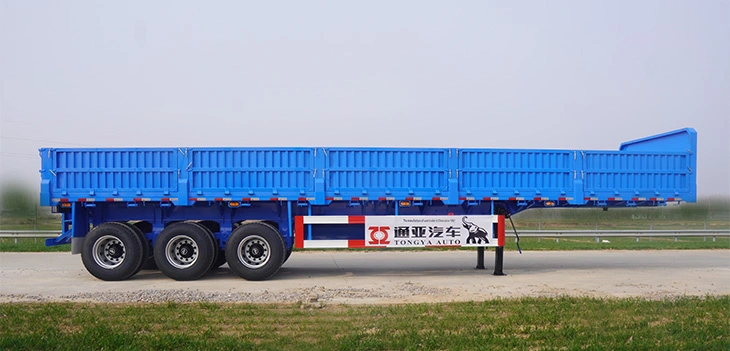

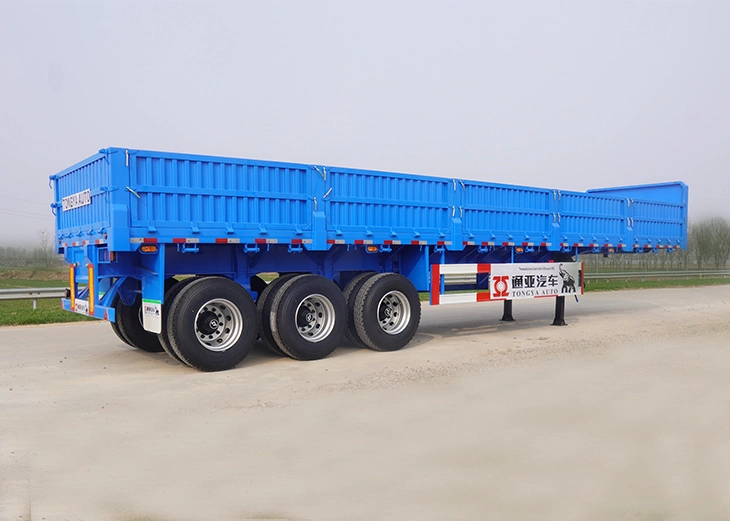

Side Wall Semi Trailer
1. Our side wall semi trailer is high quality and can carry more cargo.
2. The fence truck is made of Q345 steel, which has high strength and stable cargo capacity.
Description
| Specification | |
| Outer side dimension(mm) | 12500 × 2500 × 1000 |
| Loading Capacity (Ton) | ≤ 50T |
| AXLES | 13 T 3axles FUWA Brand, |
| Tire | 12R22.5, 13pieces Triangle |
| Rim | 9.00-22.5, 13pieces China Brand |
| Suspension | Mechanical suspension (America Type) |
| Spring leaf | 90(W)mm*13(Thickness)mm *10pices, |
| King pin | JOST brand 2.0 or 3.5 inch bolts type |
| Support leg | JOST brand |
| Main Beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm,down plate is 16mm ; Material is Q345B Steel . |
| Plateform | 3mm diamond plate steel |
| Side beam | 16# channel steel |
| Brake chamber | WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber; One piece of 45L air tank |
| Valve | WABCO valve |
| ABS | Without |
| Light | LED light |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of Anticorrosion prime, 2 coats of final paint |
|
Twist Lock |
12 piece and transportation container(customized) |
40FT Side Wall Semi Trailer
3. The axles use FUWA brand, and the outriggers use JOST and other international big brand accessories.
4. side wall semi trailer is reasonable in design, beautiful in appearance and perfect in paint finish.
The Most Powerful Factory in China
Established in 1982; Total assets of 70 million dollars; Factory covers an area of 400,000 square meters; Strong semi-trailer factory in China; One of the drafters of China's semi-trailer standard.
We have our own production workshop
We have first class fully automatic laser cutting machine, Laser locating welding machine, fully automatic welding robot, large-sine Bending Machine and Board Press machine in china and tanker body automatic welding tipper, powder spray and baking varnish room, Switzerland four-wheel ATD-GPS and 1200 sets TEST EQUIPMENT which are advanced technology and Hi-Tech equipment.
