1.Made of high-strength steel, it has a strong load-bearing capacity and will not be structurally deformed or damaged.
2.The flatbed is designed to be evenly stressed, which extends the life of the vehicle.
3.Easy loading and unloading of goods, saving labor costs.
| Front A semi trailer configuration | |
| Tare Weight | About 5.5T |

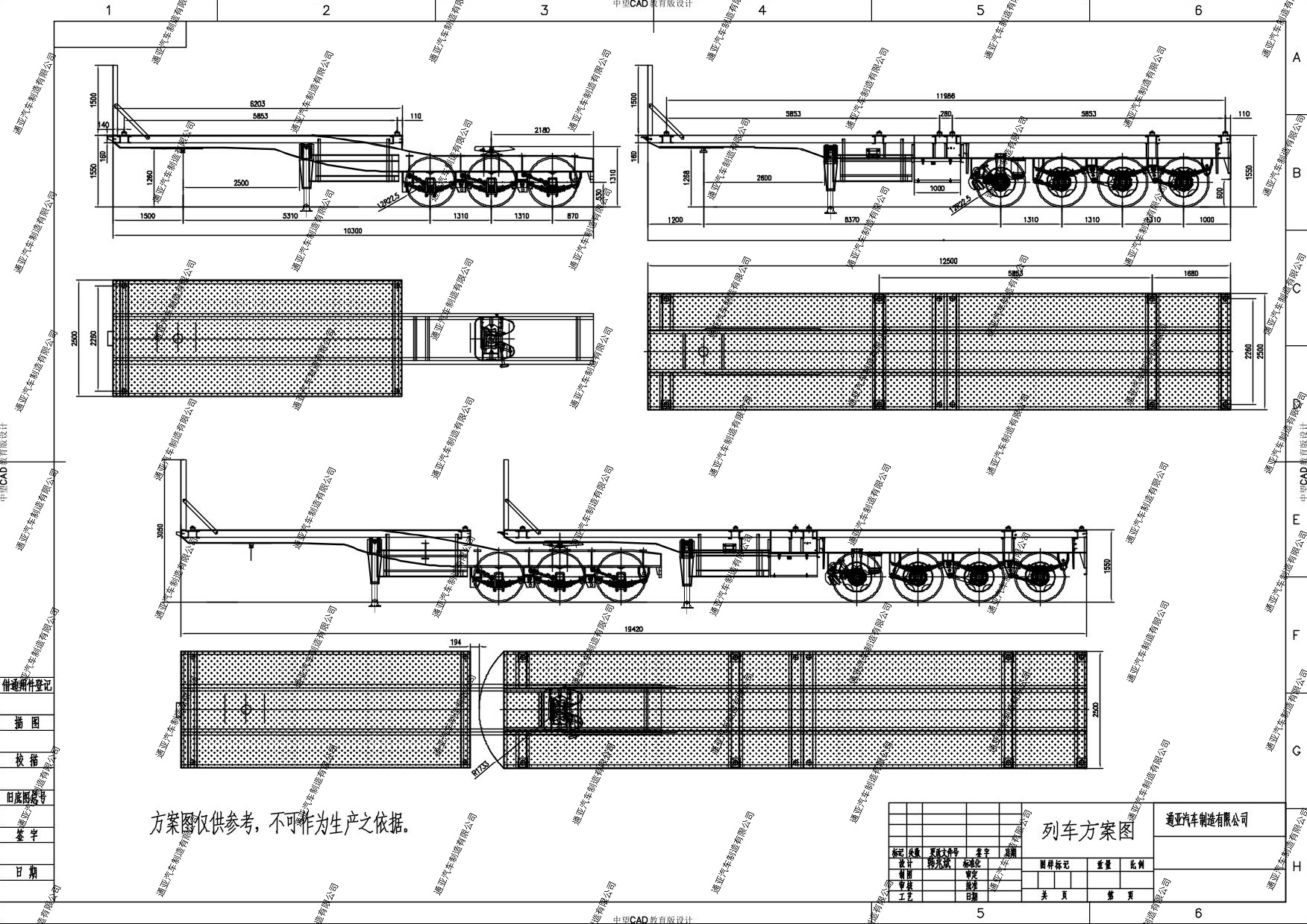

| Dimension | 6000mm*2500mm*1500mm （final dimension should be designed according to the final drawing picture） |
| Loading Capacity (T) | 20T |
| Axle | 13 T/ FUWA Brand three pieces |
| Rim | 9.0-22.5 thirteen pieces |
| Tire | 12R22.5 Triangle brand thirteen pieces （with one spare tire ） |
| Suspension | Mechanical suspension |
| Spring leaf | 90(W)mm*13(Thickness)mm*10 |
| Fifth wheel | 50# （2.0inch） |
| King pin | 2.00inch JOST brand |
| Support leg | JOST A300C one pair |
| Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345 |
| Side beam | 16mm channel steel ( Material is Q235steel ). |
| Platform | 3mm |
| Brake chamber | WABCO RE 6 relay valve; T30/30 Spring brake chamber（special for export trailer); Two pieces of 45L air tanks |
| ABS | Optional |
| Twist Locks | Four pieces, up and down type, special for exporting. |
| Behind B semi trailer configuration | |
| Tare Weight | About 6.5T |
| Dimension | 12500mm*2500mm*1500mm （final dimension should be designed according to the final drawing picture） |
| Loading Capacity (T) | 40T |
| Axle | 13 T/ FUWA Brand four pieces |
| Rim | 9.0*22.5 seventeen pieces |
| Tire | 12R22.5 triangle brand seventeen pieces（with one spare tire ） |
| Suspension | Mechanical suspension |
| Spring leaf | 90(W)mm*13(Thickness)mm*10 |
| King pin | 50# （2.0inch） 一个 |
| Support leg | JOST A300C |
| Main beam | Height: 500mm, upper plate is 14mm, middle plate is 8mm, down plate is 16mm ; Material is Q345Steel . |
| Side beam | 16mm channel steel ( Material is Q235steel ). |
| Platform | 2.3mm |
| Brake chamber | WABCO RE 6 relay valve; T30/30 Spring brake chamber（special for export trailer）; Two pieces of 45L air tanks |
| ABS | without |
| Twist Locks | 12 pieces, up and down type, special for exporting. |
| Same configuration | |
| Light | LED light |
| Voltage | 24V |
| Receptacle | 7 ways (7 wire harness) |
| Tool box | One piece, 1m×0.5m×0.5m (Size can be choose freely)(equipped with 1 unit Tire spanner,1 unit gudgeon sleeve and 1 unit cranking bar) |
| Painting | Complete Chassis sand blasting to clean rust, 1 coat of anticorrosive prime, 2 coats of final paint |
| Delivery time | 15 workdays |
