Tri Axle Container Chassis Price

Dimensions12450*2490*1400mm(customized)
Tare Weight6.5T
Loading Capacity45T
Axle3 Axle
ColorCustomized
Tri Axle Container Chassis Price

Description

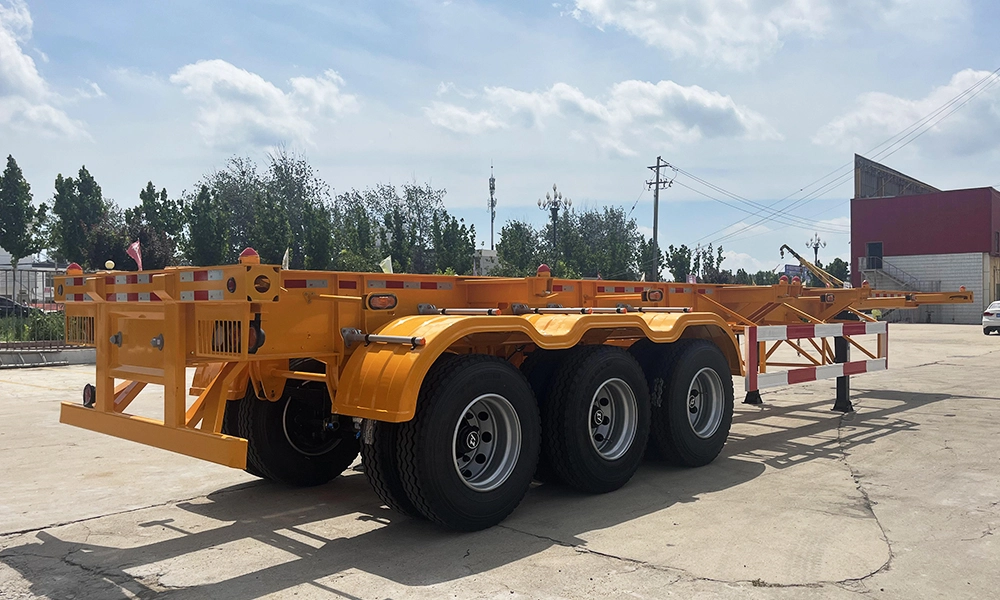

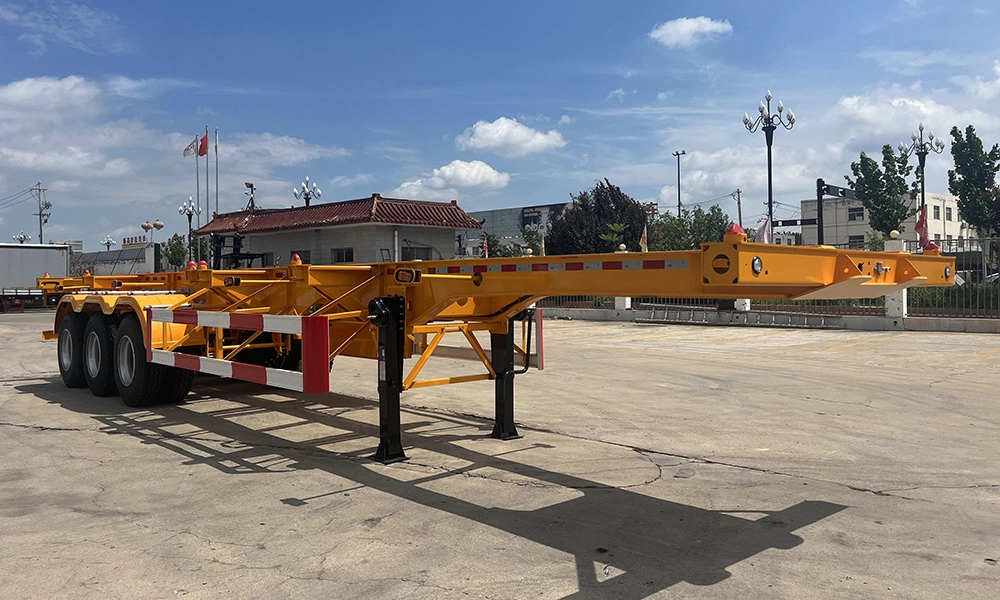

Skeleton Semi Trailer of Advantages:

1. Light weight, can increase the cargo loading capacity, improve the efficiency of transportation;

2. High space utilization rate, open skeleton structure, can be adapted to different sizes and specifications of the container, can make full use of space, to achieve efficient transportation;

3. High loading and unloading efficiency, which can greatly shorten the loading and unloading time of goods and improve the logistics efficiency.

TONGYA skeletal trailer can be configured for specific container combinations, minimizing the unladen weight. Can be configured individually for: 20h, 30′, 40′, 45′, 2×20′ or any combination of all of these containers.
The overall structure of the skeleton trailer is straight beam or gooseneck, it is mainly used in the logistics systems of ships, ports, routes, highways, transit stations, bridges, tunnels and multimodal transport.
If you have special needs for a skeleton semi-trailer with a gooseneck, we can design it for you according to your requirements.

Skeleton Semi Trailer of Specification:

Specification
Tare Weight About 6.5tons
Outer side dimension (mm) 12450*2490*1400
Loading Capacity(Ton) ≦45T(40FT)
Axles 13T/PER, Tongya or FUWA or BPW brand
Tire 12.00R22.5 or 315/80R22.5 Triangle brand
Rim 9.00-22.5 China Brand
Suspension Mechanical suspension
Spring leaf 90(W)mm*13(Thickness)mm 10 pcs leaf spring
King pin JOST brand 2.0 or 3.5
Landing legs JOST brand A300C
Main Beam Height:500mm,upper plate is 14mm,middle plate is 8mm,down plate is 16mm;Material is Q345B Steel.
Brake chamber WABCO relay valve
Twist Locks 12 units ISO twist locks
ABS Optional
Light LED light
Voltage 24V
Electrical One unit of 27V 7-pin ISO 1185 socket
Tool box One piece, 1m*0.5m*0.5m (Size can be choose freely)
Painting Sand blasting before painting;one casts of primer,anti-corrosion;two coats of finish painting;color advised by client.

For more product details,please contact us.We will offer you the most compective pricing.
