FAW TRUCKS J5M Series Model 6x4

Description

FAW TRUCKShas seven million truck users all over the world. In 2018 and 2019, it ranked first in the world in terms of sales volume of a single brand heavy trucks. FAW J5M V is the Middle end truck product in China.

Well-known for its fuel efficiency, light weight and low maintenance cost, forging a high cost performance truck with high efficiency, reliability, safety and comfort ability.

Vehicle type		CA4256
Drive mode		6×4
Cab		J5M 2.0 right-set raised floor flat top full-floating cab(4-point air suspension)
Engine	Model	WEICHAI WP10.380E32
	Displacement(L)	9.7
	Maxmum power(hp)	380
	Rated speed（rpm）	2200
	Maximum torque/speed(Nm/rpm)	1460/1200~1600
	Emission	Euro II
Transmission	Model
	Form/number of gears	Manual/12
	Forward gear ratio range	15.53-1.0
Front axle load(kg)		6500
Front suspension		Parabolic springs
Rear axle load (kg)		2*11500
Rear suspension		Parabolic springs
Rear sxle model/speed ratio		435/4.11
Chassis self weight(kg)		7600
Total allowable weight of the vehicle (train)(kg)		4900
Wheel base(mm)		3300+1350
Tire		12R22.5-18
Brake system		Drum brake,ABS,hydraulic

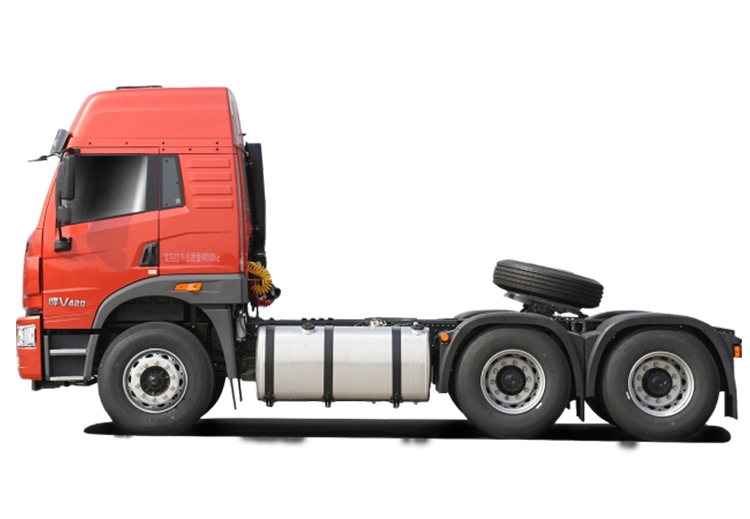

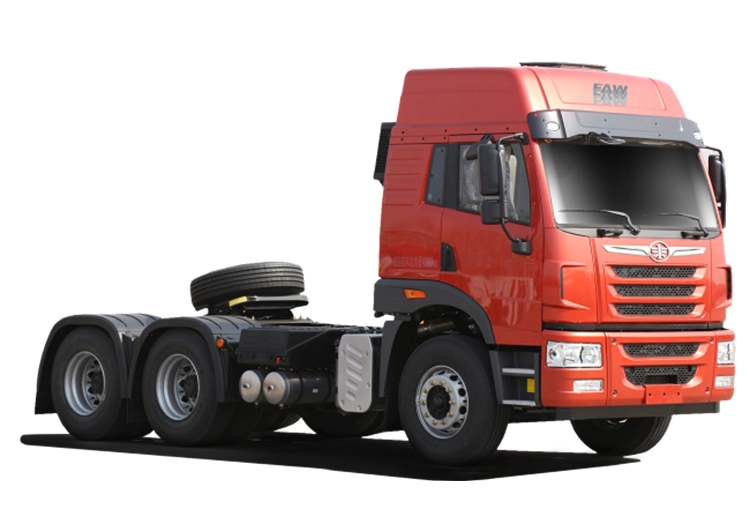

Product Images

FAW TRUCKS J5M Series Model 6x4

Well-known for its fuel efficiency, light weight and low maintenance cost, forging a high cost performance truck with high efficiency, reliability, safety and comfort ability.
